ALLTOP Best solar lithium battery pack company
1. The offered ALLTOP is designed by our experienced professionals by making use of quality raw material. Made of high-quality die casting aluminum alloy, the product features good heat dissipation
2. Its right color and pattern combination can make people improve their entire appearance. It complements people's bodies and other features. Easy installation is the feature of the product
3. It comes with fine reflectivity. More light is reflected as its fabric has a high thread count and is tightly woven together. The lamp body of the product is characterized by good abrasion resistance
| |
Model | STF512240 |
DATASHEET | POWER PORTER 12.0 |
| BATTERY DATA | |
NOMINAL VOLTAGEI/ | 51.2V |
CAPACITY | 240AH |
NOMINAL ENERGY | 12.28KWH |
DISCHARGE VOLTAGE | 45-54V |
CHARGE VOLTAGE | 51.5V-54V |
CONT. CHARGE CURRENT | 100A |
CONT. DISCHARGE CURRENT | 100A |
MAX. DISCHARGE CURRENT | 125A |
CONT. DISCHARGE DC POWER | 5000W |
| MAX. DISCHARGE DC POWER | 10000WI MORE THAN 2 UNITS IN PARALLEL 0°C-45°C (CHARGE) |
| OPERATING TEMPERATURE | -20°C - 45°C (DISCHARGE) |
GENERAL DATA | |
| SCALABILITY | UP TO 4 UNITS |
| DOD | 90% |
| COMMUNICATION | CAN2.0/ RS485 |
| CYCLE LIFE | > 6000 |
| IP GRADE | IP31 |
| INSTALLATION | WALL OR FLOOR MOUNT |
| DIMENSION | 900X 460X200MM |
| WEIGHT | 112KG |
1.National High-Tech Enterprise
2.Diesel and lead acid replacement
3.Home smart energy management
4.Safe, efficient, green energy5.Large capacity energy storage lithium iron phosphate battery
. Compact size• High efficiency
• Easy installation• High energy density
• Excellent safety of LiFePO4 Cells
* When the temperature is below 0°C or above 45°C, the performance will be limited.

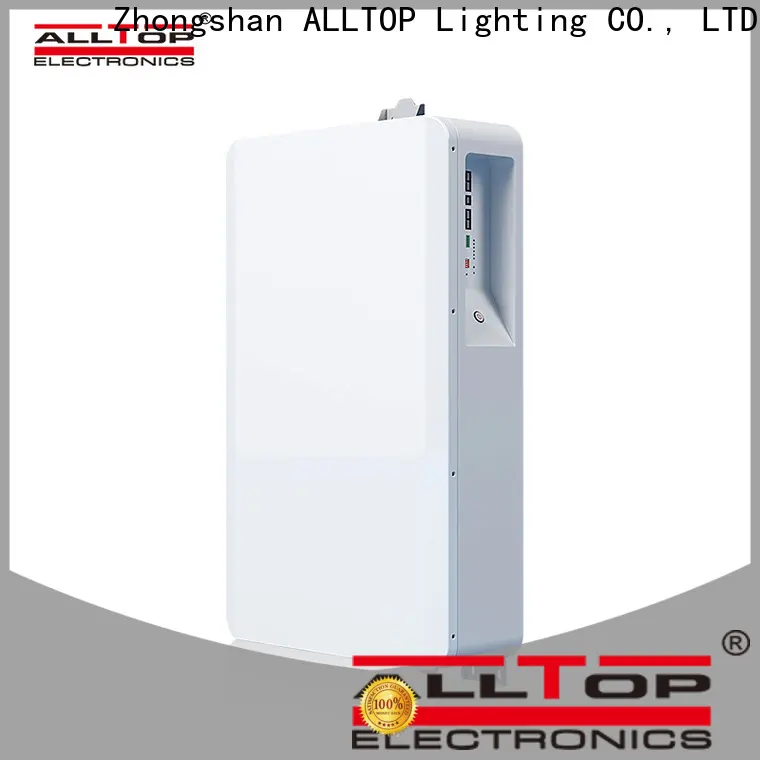

Power porter 12Kwh ENERGY STORAGE SYSTEM
CIRCUIT DIAGRAM
MULTIFUNCTION IN ONE BATTERY PACK
• High power input and available energy ratio
• Modular design, expandable system
• Safest battery and perfect compatibility
• Natural cooling, easy installation
• Certification available
Match installation screw
We use K=K strong white carton outer package
Printing the product pictures on the boxes
Company Features
1. As a fast-growing company, Zhongshan ALLTOP Lighting CO., LTD is known as a professional manufacturer in the R&D, design, and manufacture of high-quality .
2. ALLTOP uses advanced technology to produce solar lithium battery pack.
3. Our firm bears societal responsibilities. We have promoted and developed manufacturing processes that use less raw materials, which leads to sustainability.
