Item No. |
STAL601128 |
STAL122256 |
STAL222256 |
STAL352512 |
STAL502512 |
Rated Power |
0.6kW |
1.2kW |
2.2kW |
3.5kW |
5kW |
In-Built Lithium Battery |
50Ah/12.8V |
50Ah/25.6V |
100Ah/25.6V |
75Ah/51.2V |
100Ah/51.2V |
Output Voltage |
220VAC |
220VAC |
220VAC |
220VAC |
220VAC |
Output Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
Input Voltage Range |
145-275VAC |
145-275VAC |
170-275VAC |
170-275VAC |
170-275VAC |
Input Frequency |
50/60Hz |
||||
Maximum Photovoltaic Voltage |
100VDC |
100VDC |
100VDC |
150VDC |
150VDC |
MPPT Tracking Voltage Range |
18-100VDC |
35-100VDC |
35-100VDC |
60-150VDC |
60-150VDC |
Rated Charge Current: |
30A |
30A |
30A |
30A |
60A |
Maximum Power |
420Wp |
840Wp |
840Wp |
1500Wp |
3000Wp |
5VDC USB Output Port |
2 Units/MAX 2A |
2 Units/MAX 2A |
2 Units/MAX 2A |
2 Units/MAX 2A |
2 Units/MAX 2A |
12VDC Output Port |
2DC Ports/MAX 2A |
2DC Ports/MAX 2A |
2DC Ports/MAX 2A |
2DC Ports/MAX 2A |
2DC Ports/MAX 2A |
Ambient Temperature For Operation |
-20-+50℃ |
-20-+50℃ |
-20-+50℃ |
-20-+50℃ |
-20-+50℃ |
Ambient Temperature For Storage |
-25 -+55℃ |
-25 -+55℃ |
-25 -+55℃ |
-25 -+55℃ |
-25 -+55℃ |
External Dimensions |
460*182*397mm |
485*202*406mm |
500*229*464mm |
577*350*644mm |
627*405*664mm |

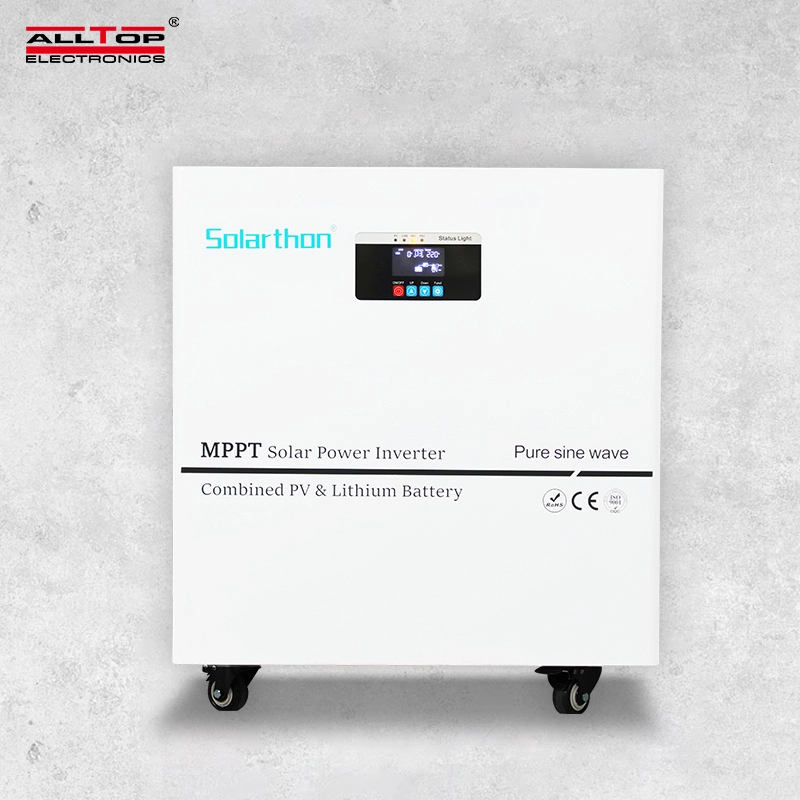

Solar power system is an off-grid solar generator designed to provide stable and reliable power to homes and communities or areas without or even electricity without access to grid power. The solar system is characterized by convenient movement, easy installation , and reliable performance, which is very suitable for situations requiring emergency power.
It is the ideal, reliable energy source for many applications such as lighting, radios, fans, Tvs, computers, refrigerators. The USB port is compatible with all 5V-USB charging devices. It can also be used as a backup power sourcen
1. Dual CPU intelligent control technology, excellent performance.
2. Pure sine wave AC output, suitable for a wide range of loads.
3. Power supply mode/energy-saving mode/battery mode can be flexibly set.
4. Convenient and practical 5VDC-USB output port and 12VDC output port.
5. Digital LCD and LED for visualizing the operating status of the device.
6. Overcharge protection and over discharge protection to extend battery life.
7. Safe and reliable, intelligent exhaust fan.
8. Overall automatic protection and alarm,including AC output overload protection,short circuit protection, etc.
The solar system is equipped with multiple charging ports: AC, USB, and car charger ports, providing AC and DC output in two *different voltage modes, which can supply power to multiple devices at the same time to meet your various needs.
