We are a leading manufacturer of solar power utilization and lighting systems

solar led street best quality supplier 1
solar led street best quality supplier 1

solar led street best quality supplier

Inquiry
Company Advantages
1. ALLTOP solar led street meets international quality standards. Its is manufactured according to strict standards of lighting safety regulations. Thanks to the adoption of the aluminum alloy, the product is waterproof
2. The product has a fast response time, which can be lighted up very quickly and can achieve full brightness under seconds. Easy installation is the feature of the product
3. The product has good quality and excellent performance. The product is totally energy-saving and eco-friendly and does no pollution to the environment
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
12V
Lamp Luminous Flux(lm):
1650
CRI (Ra>):
85
Working Temperature(℃):
-35 - 50
IP Rating:
IP65
Certification:
ce, CQC, EMC, FCC, RoHS, VDE
Warranty(Year):
3
Place of Origin:
Guangdong, China
Brand Name:
DAZHAO
Model Number:
0320A15-01
Lamp Body Material:
Aluminum Alloy
Color Temperature(CCT):
6000-6500K
Type:
12v high lumen bridgelux 15w led solar street light all in one
Solar panel:
60w(Mono)
Light efficiency:
100-110lm/W
Application:
garden, courtyard, road, outdoor, etc.
Charging by sun:
6-8 hours
Light degradation rate:
25000h ≤ 30%
Lighting Bulbs & Tube:
LED
Warranty:
3 years
Item Type:
Street Lights
Working Lifetime(Hour):
30000
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month

solar led street best quality supplier 2

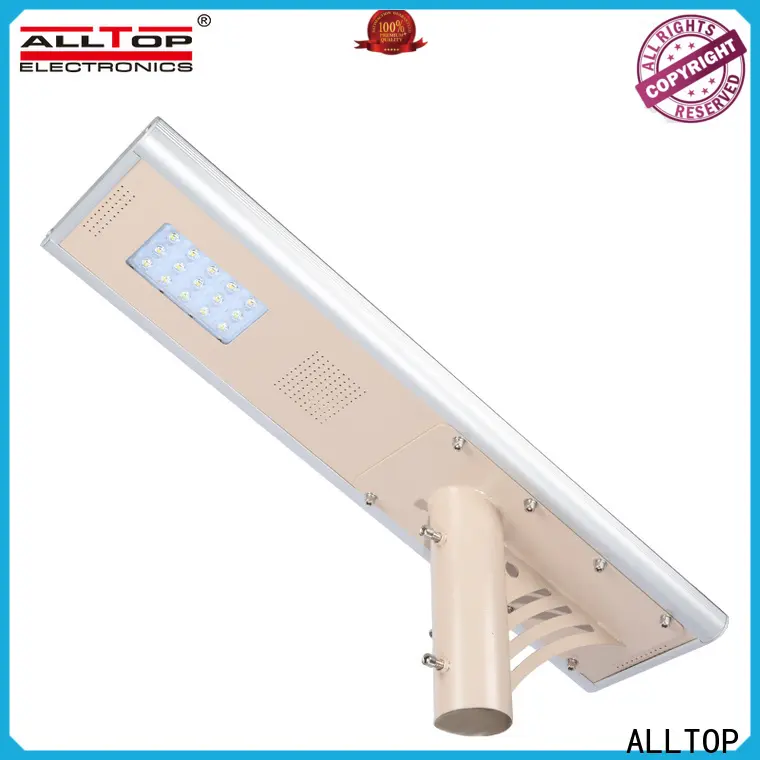

12v high lumen explosion proof bridgelux 15w 40w solar led street light all in one



PRODUCT ATTRIBUTE

Item No.

0320A15-01

Dimension

840*225*294mm

Solar panel

17V 20W(Mono)

Power

15W

Luminous flux

4000~4400lm

Light degradation rate

25000h ≤ 30%

Charging time

6-8 hours

Discharging time

30-36 hour

Work Mode

PIR Sensor

Source

Bridgelux Chip

Light efficiency

100-110lm/W

Rated life

≥50000h

Color temperature

6000-6500K

Working temperature

-30~+50°C

IP code

IP65

Battery

Life Po4 12.8V 12AH

Certificate

CE, ROHS, SAA,TUV, EMC, LVD

Application

Garden, courtyard, road, outdoor, etc.

Install height

3-5m

Warranty

3 years







Product Description

solar led street best quality supplier 4solar led street best quality supplier 6solar led street best quality supplier 8solar led street best quality supplier 10solar led street best quality supplier 12solar led street best quality supplier 14solar led street best quality supplier 16solar led street best quality supplier 18More detail information, please just feel free to contact us.

Product Features:

1.“All in One solar steer light ” could not work without sunshine, please select the suitable model according to the local sunshine radiation and the annual total radiation. We suggest use the both AC and DC charging model in those places where lack of sunshine or have long-time rainy days.



2.“All in One solar street light” adopts the long life Lithium battery for storing energy, charging temperature at day time is between: 0~+60, when temperature goes lower than 0, the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0. Discharging temperature at night is between: -20~+60, any ambient beyond will take damage to the battery. So please check these factors while selecting the street light.





3.Battery of the All in One solar street light” can be stored for 6 months long after fully charged.Therefore please examine and charge it periodically after long time transportation or storage to prevent damaging.



4.When install the lights in Northern Hemisphere, please adjust the solar panel to the South as much as possible to collect maximum sunshine radiation, while install them in Southern Hemisphere, By the same token, keep solar panel to north. At the same time please keep it away form any shadow of houses, trees etc.



5.Keep clear of the surface of the All in One solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.



6.All in One solar street light have got the standard of IP65. The vents on the surface is designed for radiating. The materials are made of aluminum alloy which can survive in the environment of seaside and desert.



7.The knob of the fuse is at the left rear end of the light, please insert the fuse while using. By the way, there is one piece of fuse more as backup(If not fuse, then it is switch, just turn the switch)





Packaging & Shipping

solar led street best quality supplier 20

Company Information



Zhongshan ALLTOP Lighting CO., LTD always takes the lead to produce high quality LED street lights. The service life of the LED light can reach 50,000 hours. Zhongshan ALLTOP Lighting CO., LTD's pre-sales provide the most effective one-stop solution. The service life of the LED light can reach 50,000 hours.

Company Features
1. With years of rich experience in the manufacture of solar street light with built in battery , Zhongshan ALLTOP Lighting CO., LTD has become a competitive manufacturer in the industry.
2. we have successfully developed a variety of solar led street series.
3. Our company bears social responsibilities. We manufacture products through economically-sound processes that minimize negative environmental impacts while conserving energy and natural resources.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
