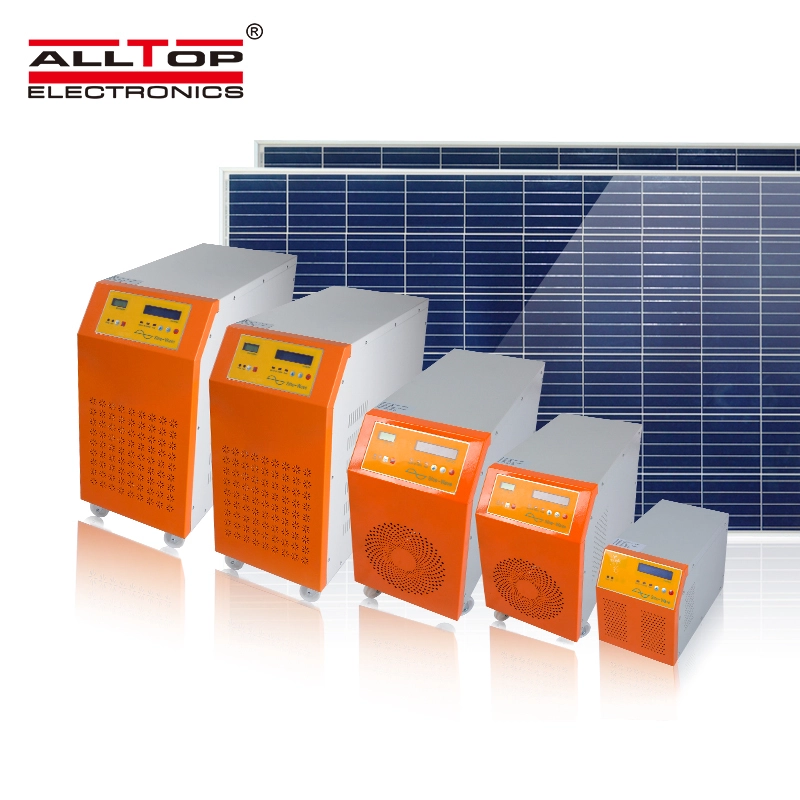

Solar air conditioner system 1000W residential in high efficiency competitive price solar energy system
Solar air conditioner system 1000W residential in high efficiency competitive price solar energy system
PRODUCT ATTRIBUTE
| Item No. | DQ1100B1K-01 | |
|
Rated power(W) |
1000W |
|
|
Rated DC voltage(V) |
96V or 120V |
|
|
Line input |
Input voltage(V) |
165V-275V, |
|
Charge current(A) |
5-15A |
|
|
Inverter output |
Output voltage(V) |
220VAC±5% &5V,12V DC |
|
Output frequency |
50Hz/60Hz±1% |
|
|
Wave form |
Pure Sine Wave, THD<4%(Full Load) |
|
|
Solar input |
Maximum voltage(V) |
88V or 176V |
|
Rated power(Wp) |
8000 |
|
|
Solar Controller |
Charge current(A) |
40/30 |
|
MPPT range(V) |
96V(80-120) 120V(100-160V) |
|
|
Charging efficiency |
90%-95%, Peak on 97% |
|
|
Other
|
Over charge protective voltage of battery(V) |
96V(114); 120V(142) |
|
Over charge recover-voltage of battery(V) |
24V(13.7) 24V(27.4) 48V (54.8) |
|
|
Voltage drop between solar module and battery(V) |
≤0.5V |
|
|
Voltage drop between loads and battery(V) |
≤0.25V |
|
|
Start speed of cooling fan |
Have |
|
|
Environment Humidity |
0-90% Maximum,non-condensable |
|
|
Protective Functions |
Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules |
|
|
Control method |
MPPT |
|
|
Size :D*W*H(mm) |
390*200*220 |
|
|
N.W&G.W(kg) |
14/16 |
|
