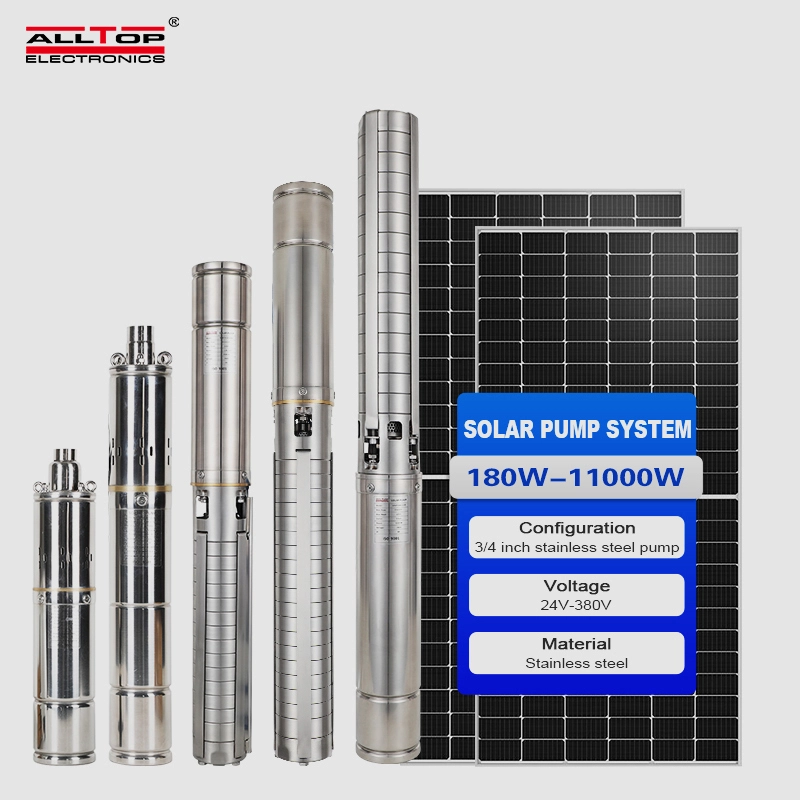

Item No. | 60ZY24-180 | 80ZY24-210 | 100ZY24-270 | 120ZY48-500 | 100ZY72-1100 | 125ZY96-1500 | 158ZY216-2200 | 211ZY380-3000 | 230ZY380-3700 | 125ZY380-5500 | 168ZY380-7500 | 300ZY380-11000 |
Configuration | 3 inch stainless steel pump + built-in controller + ordinary water outlet | 4 inch stainless steel screw pump + external | ||||||||||
Impeller | Screw | SS304 | ||||||||||
Voltage | 24V | 24V | 24V | 48V | 72V | 96V
| 216V | 380V | 380V | 380V | 380V | 380V |
Power | 180W 0.25HP | 210W 0.3HP | 270W 0.36HP | 500W 0.75HP | 1100W 1.5HP | 1500W 2HP | 2200W 3HP | 3000W 4HP | 3700W 5HP | 5500W 7.5HP | 7500W 10HP | 11000W 15HP |
Maximum flow | 1.3m³/h | 1.5m³/h | 1.5m³/h | 1.8m³/h | 4m³/h | 9m³/h | 9m³/h | 9m³/h | 9m³/h | 25m³/h | 25m³/h | 20m³/h |
Maximum head | 60m | 80m | 100m | 120m | 100m | 125m | 158m | 211m | 230m | 125m | 168m | 300m |
Outlet | 3/4 inch | 3/4 inch | 3/4 inch | 3/4 inch | 1 inch | 1.25 inch | 1.25 inch | 1.25 inch | 1.25 inch | 2 inch | 2 inch | 2 inch |
Pump diameter | ∅76mm | ∅76mm | ∅76mm | ∅76mm | ∅100*480mm | ∅100mm | ∅100mm | ∅100mm | ∅100mm | ∅100mm | ∅100mm | ∅100mm |
Material | stainless steel | |||||||||||
Solar panel configuration: 275W/30V*1PCS | Solar panel configuration: 330W/36V*1PCS | Solar panel configuration: 200W/36V*2PCS+400W/36V*1PCS | Solar panel configuration: 200W/36V*4PCS+400W/36V*2PCS | Solar panel configuration: 275W/30V*6PCS | Solar panel configuration: 275W/30V*6PCS | Solar panel configuration: 275W/30V*8PCS | Solar panel configuration: 350W/36V*9PCS | Solar panel configuration: 330W/36V*15PCS | Solar panel configuration: 400W/36V*15PCS | Solar panel configuration: 330W/36V*30PCS | Solar panel configuration: 400W/36V*30PCS | Solar panel configuration: 400W/36V*45PCS |
Product Features:
1. Stainless steel material, high efficiency, small size, light weight. multiple functions;
2. Digital display MPPT solar water pump controller function:
3. Controller function: low voltage protection, high voltage protection, overcurrent protection, water shortage shutdown protection, reverse polarity protection;
4. The solar water pump uses solar power and battery at the same time. and can connect solar panels and DC batteries at the same time, and uses solar power in advance, which is more efficient than MPPT function;
BASIC INTRODUCTION
The solar pumpina system is mainly composed of photovoltaic modules, solar pump controller/inverter and water pump, the solar panel converts the sunlight into electrical energy, passes it to the solar pump controller, the solar controller stabilizes the voltage and output power to drive the pump motor, even on cloudy days, it can pump 10% of the water flow every day. The sensor is also connected to the controller to protect the pump from running dry and automatically stop the pump when the tank is full.
ADVANTAGES OF WATER PUMP PRODUCTS
1. Stable, photovoltaic power supply rarely uses moving parts, reliable work.
2. Safe, does not produce any solid, liquid and gas harmful substances, environmental protection.
3. Good compatibility, photovoltaic power generation can be used with other energy sources, convenient to increase capacity.
4. High degree of standardization, components in series and parallel to meet the needs of different electricity consumption, strong versatility.
5. Simple installation and maintenance, low operating cost, especially because of its high reliability.
6. Without supervision, the pump works at sunrise and rests at sunset, saving labor costs.
1.The Maximum Water Flow Output In Equal Environment Compatible With AC/DC Two InputsLED Displaysl
2.Built-in Self-adaptive high-accuracy photovoltaic array MPPT algorithm accuacy up to 99%
3.Fast auto-tune(less than 1 minute)Overload:150% rated output current,1 minute
4.Motor Soft-Start Can Avoid Water Hammer Effect, Improve The System Life
5.Quick Installation design, No additional maintenance
6.RS485-Based Real-Time Remote Monitoring System
MPPT CONTROLLER FUNCTION/MPPT
4 inch solar brushless DC submersible pump (stainless steel impeller pump) configuration
AD/DC AC/DC pump controllerAutomatic switching/intelligent timing switching/DC input intelligent anti-reverse connection
1. Maximum input power: 2.5Kw
2. DC input voltage: 108VDC-410VDC
3. AC input voltage: 100VAC-264VAC
4. AC and DC mechanical pure isolation, no leakage, safe and reliable #IRING
5. The structure is strictly sealed, and the waterproof grade is IP67
6. AC and DC power supply switching conditions can be set individually, flexible and widely used.
